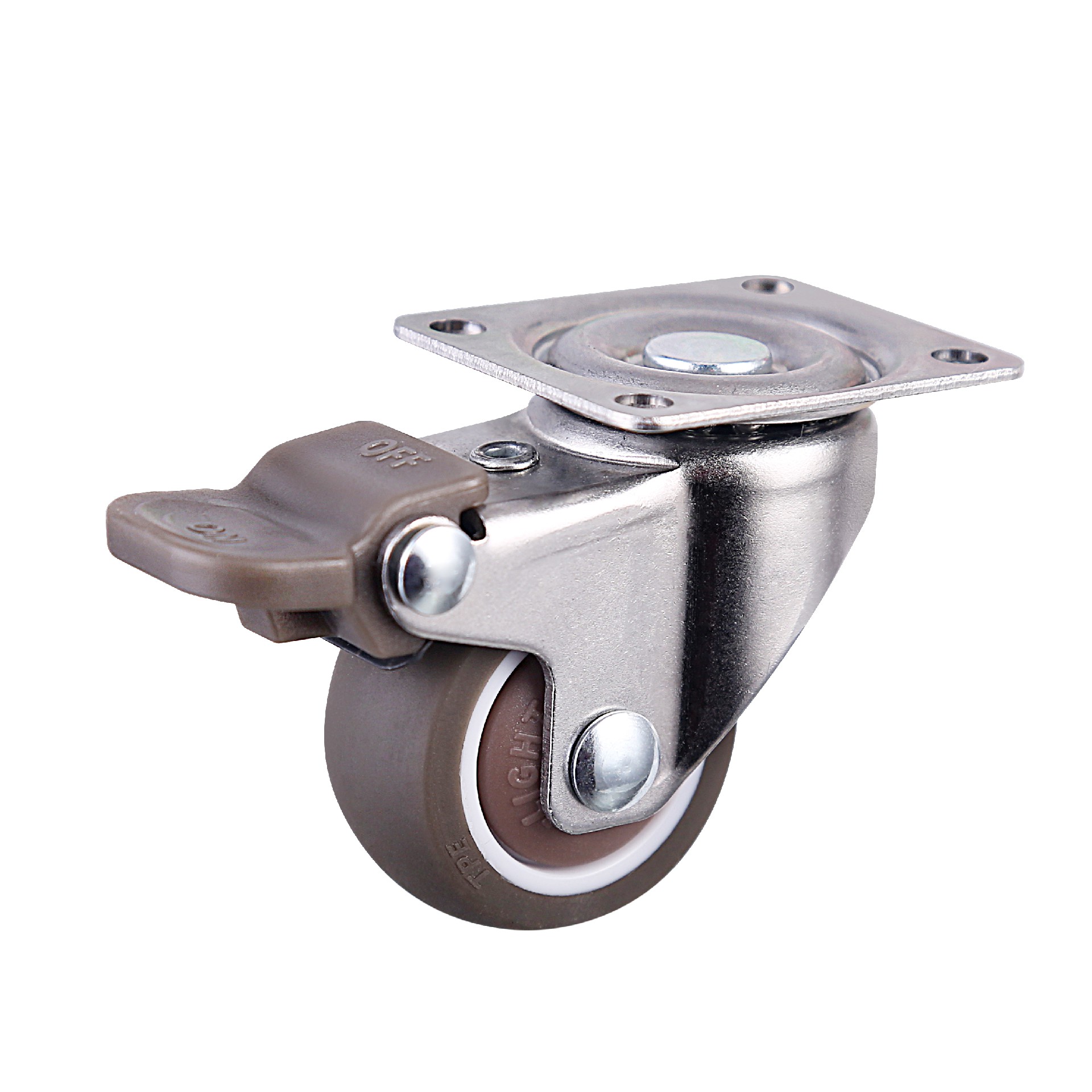

工業系列微輕型腳輪01 Series（系列）
2021-08-19 1022

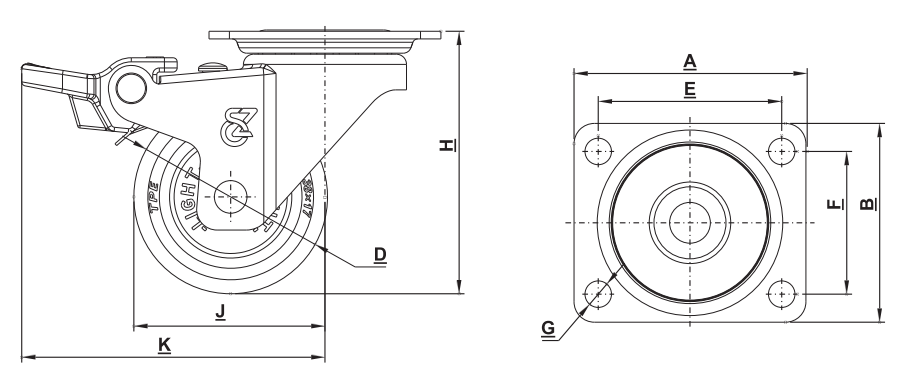

| 尺寸 | 安裝方式 | 底板大小 | 安裝孔距 | 安裝孔 |
| Size | Fitting type | Plate size | Hole spacing | Hole diameter |
| 1" | 平底單剎 | 39X33 38X30（可選） | 30X24 29X21（可選） | 4.2 |
| 1.25" | ||||
| 1.5" | 46X39 | 36X28 | 5.2 | |
| 2" |
Model and specification(型號技術參數)
| Product | Model | WhellDiameter(mm) | Load Capacity (KG) | Height (mm) | Swivel Raclius (mm) | Brake swivel Radius(mm) | Wheel Width (mm) | Bearing |
| 產品 | 型號 | 輪徑 | 承重 | 安裝高度 | 輪子轉動半徑 | 最大轉動半徑 | 輪寬 | 輪軸 |
鍍鋅架MPP輪 Galvanized/PP | 01-Z1E-453B25 | 25 | 13 | 39 | 28 | 48 | 13 | 滑動軸 plain bearing |
| 01-Z1E-453B32 | 32 | 18 | 45.5 | 32 | 51 | |||
| 01-Z1E-453B38 | 38 | 23 | 53 | 37 | 60 | 17 | ||
| 01-Z1E-453B50 | 50 | 25 | 65 | 45 | 63 | 18 | ||
鍍鋅架TPE輪 Galvanized/TPE | 01-Z1E-033G25 | 25 | 12 | 39 | 28 | 48 | 13 | 滑動軸 plain bearing |
| 01-Z1E-033G32 | 32 | 17 | 45.5 | 32 | 51 | |||
| 01-Z1E-033G38 | 38 | 23 | 53 | 37 | 60 | 17 | ||
| 01-Z1E-033G50 | 50 | 25 | 65 | 45 | 63 | 18 | ||
鍍鋅架TPU輪 Galvanized/TPU | 01-Z1E-213B25 | 25 | 13 | 39 | 28 | 48 | 14 | 滑動軸 plain bearing |
| 01-Z1E-213B32 | 32 | 18 | 45.5 | 32 | 51 | |||
| 01-Z1E-213B38 | 38 | 25 | 53 | 37 | 60 | 18 | 單軸承 Single Bearing | |
| 01-Z1E-213B50 | 50 | 28 | 65 | 45 | 63 | |||
滾鉻架MPP輪 Chrome roll/PP | 01-C1E-451Q25 | 25 | 13 | 39 | 28 | 48 | 13 | 單軸承 Single Bearing |
| 01-C1E-451Q32 | 32 | 18 | 45.5 | 32 | 51 | |||
| 01-C1E-451Q38 | 38 | 25 | 53 | 37 | 60 | 17 | ||
| 01-C1E-451Q50 | 50 | 28 | 65 | 45 | 63 | 18 | ||
滾鉻架TPE輪 Chrome roll/TPE | 01-C1E-031K25 | 25 | 13 | 39 | 28 | 48 | 13 | 單軸承 Single Bearing |
| 01-C1E-031K32 | 32 | 17 | 45.5 | 32 | 51 | |||
| 01-C1E-031K38 | 38 | 23 | 53 | 37 | 60 | 17 | ||
| 01-C1E-031K50 | 50 | 25 | 65.5 | 45 | 63 | 18 | ||
烤漆架TPE輪 Paint/TPE | 01-CU1E-031X25 | 25 | 13 | 39 | 28 | 48 | 13 | 單軸承 Single Bearing |
| 01-CU1E-031X32 | 32 | 17 | 45.5 | 32 | 51 | |||
| 01-CU1E-031X38 | 38 | 23 | 53 | 37 | 60 | 17 | ||
| 01-CU1E-031X50 | 50 | 25 | 65.5 | 45 | 63 | 18 |
