醫(yī)療設備系列 52 Series （系列）
2021-08-19 839

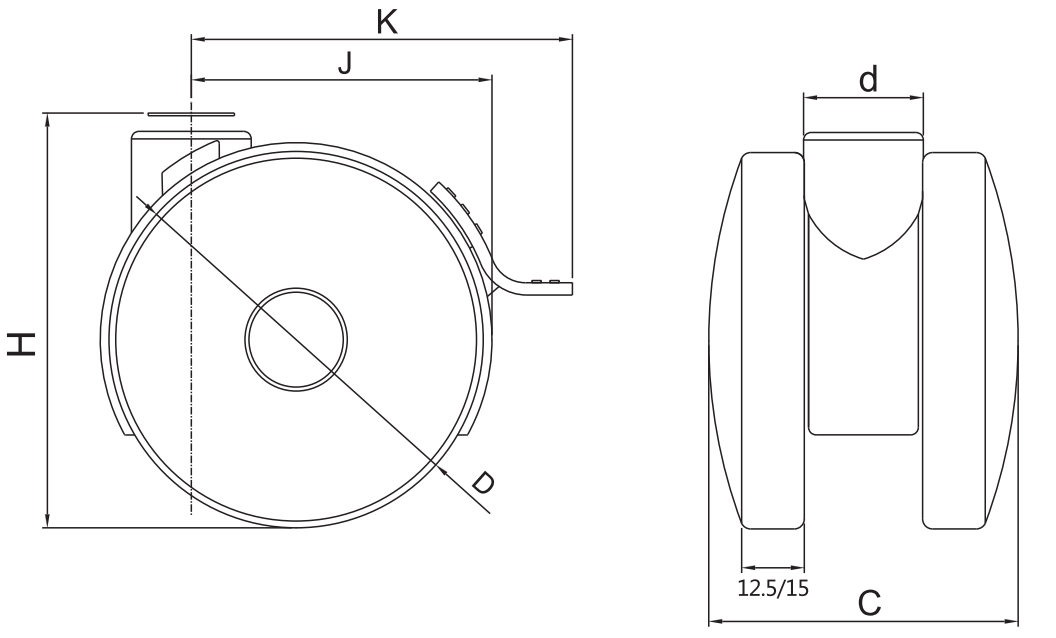

產品 Product | 型號 Model | 輪徑 Wheel Diameter(mm) | 承重 Load Capacity (KG) | 安裝高度 Height (mm) | 輪子轉動半徑 Swivel Radlius (mm) | 最大轉動半徑 Brake swinvel Radusimm) | 總輪寬 Wheel Width (mm) | 輪軸 Bearing |
 | 52-BP1-042B75 | 75 | 50 | 95 | 61 | 62 | 滑動軸 Plain bearing | |
| 52-BP1-042B100 | 100 | 55 | 151.5 | 88 | 73 | |||
| 52-BP1E-042B75 | 75 | 50 | 95 | 61 | 76 | 62 | ||
| 52-BP1E-042B100 | 100 | 55 | 151.5 | 88 | 108 | 73 | ||
 | 52-BP2-042B75 | 75 | 50 | 85 | 61 | 62 | 滑動軸 Plain bearing | |
| 52-BP2-042B100 | 100 | 55 | 111.5 | 88 | 73 | |||
| 52-BP2E-042B75 | 75 | 50 | 85 | 61 | 76 | 62 | ||
| 52-BP2E-042B100 | 100 | 55 | 111.5 | 88 | 108 | 73 | ||
 | 52-BP5-042B75 | 75 | 50 | 86 | 61 | 62 | 滑動軸 Plain bearing | |
| 52-BP5-042B100 | 100 | 55 | 112.5 | 88 | 73 | |||
| 52-BP5E-042B75 | 75 | 50 | 86 | 61 | 76 | 62 | ||
| 52-BP5E-042B100 | 100 | 55 | 112.5 | 88 | 108 | 73 |
