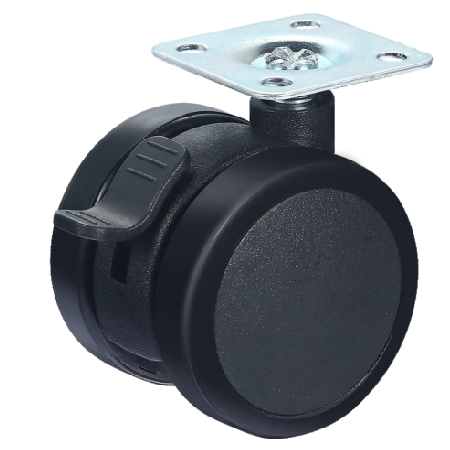

83系列 83 Series
2021-08-19 681

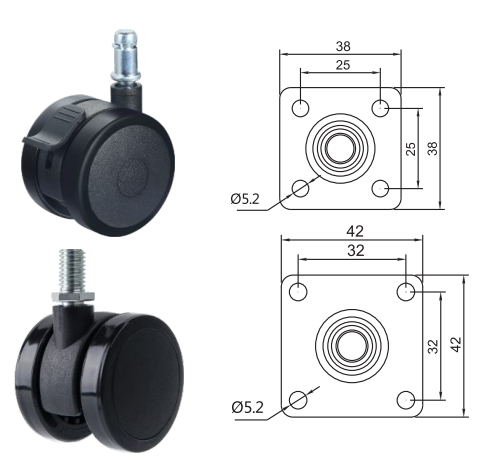

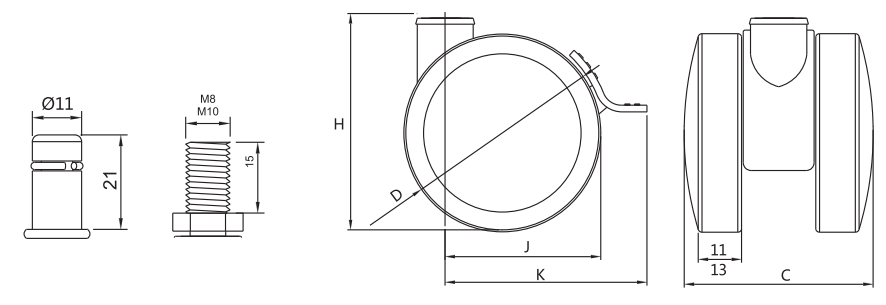

型號 Model | 輪徑 Wheel diameter | 承重 Lood-capaciy | 安裝高度 Installation height | 輪子轉動半徑 Radius of gyration | 最大轉動半徑 Maximum radius of gyration | 絲桿規格 Threaded stem size | 插桿規格 Inserted rod | 輪寬 whell width | 輪軸 Whell axle |
| 83-B1-263B50 | 39 | 20 | 62 | 39.5 | 49 | 滑動軸 Plain bearing | |||
| 83-B2-263B50 | 58 | M8/M10x15 | |||||||
| 83-B5-263B50 | Φ8x19 | ||||||||
| 83-B1E-263B50 | 62 | 51 | |||||||
| 83-B2E-263B50 | 58 | M8/M10x15 | |||||||
| 83-B5E-263B50 | Φ8x19 | ||||||||
| 83-B1-263B65 | 65 | 28 | 75 | 48 | 52 | ||||
| 83-B2-263B65 | 71 | M8/M10x15 | |||||||
| 83-B5-263B65 | Φ11x22 | ||||||||
| 83-B1E-263B65 | 75 | 63.5 | |||||||
| 83-B2E-263B65 | 71 | M8/M10x15 | |||||||
| 83-B5E-263B65 | Φ11x22 |
