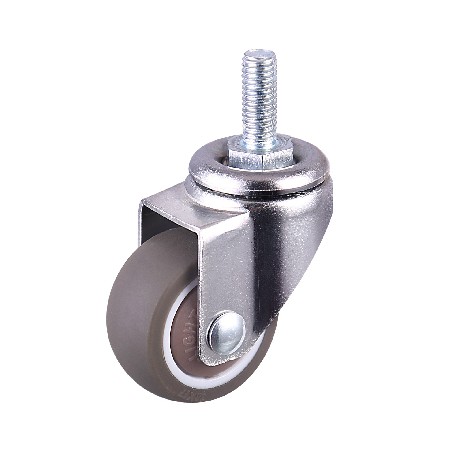

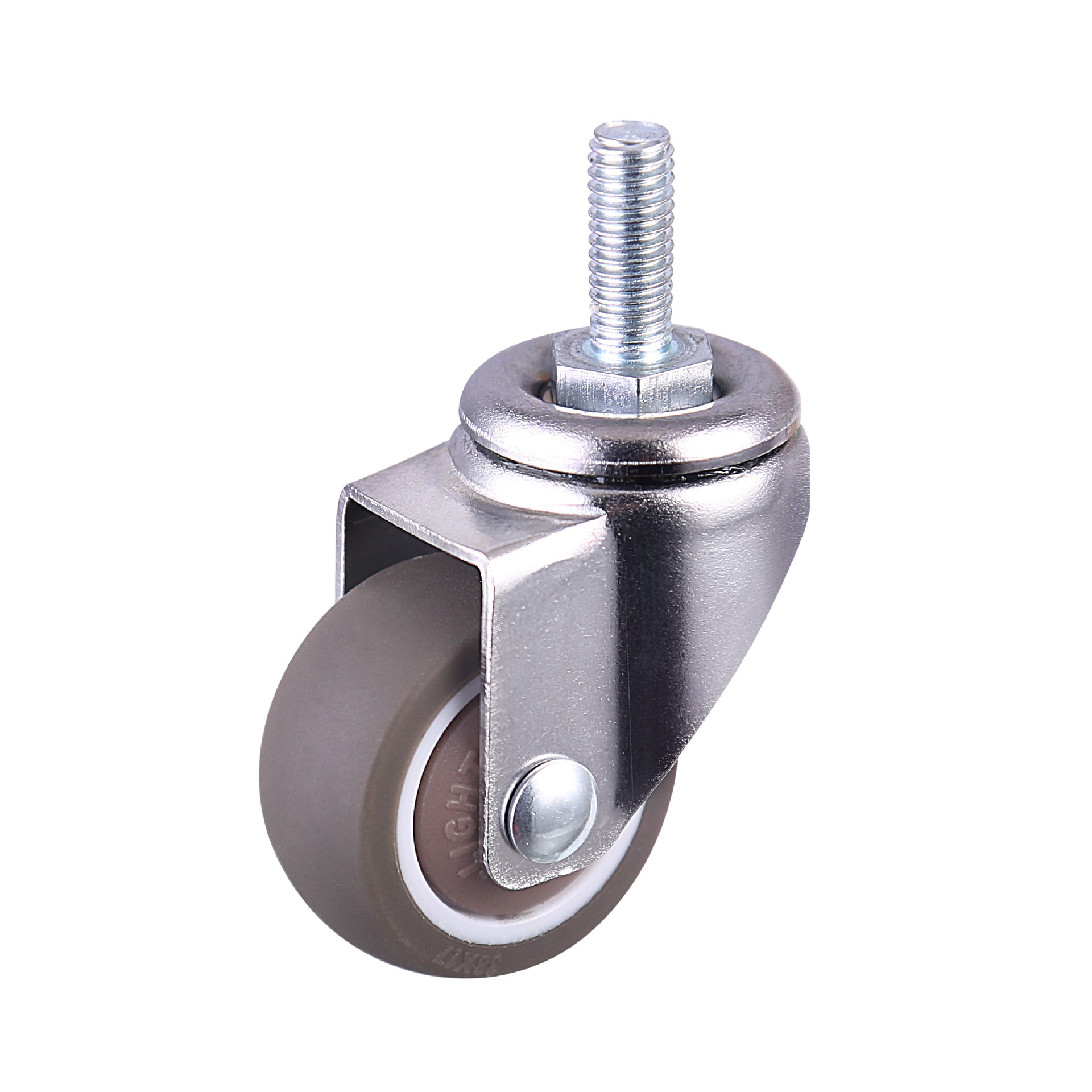

工業系列微輕型腳輪01 Series（系列）
2021-08-19 918

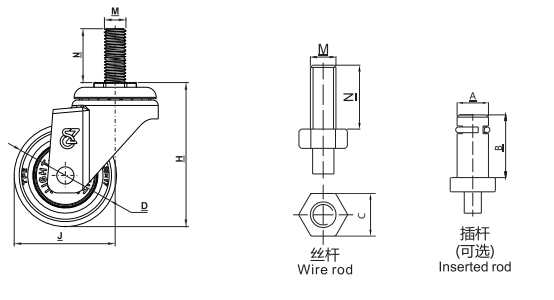

| 尺寸 | 安裝方式 | 絲桿規格 |
| Size | Fitting type | Threadedstem size |
| 1" | 絲桿活動 | M6X15(默認) M8X15(可選) |
| 1.25" | ||
| 1.5" | M8X20 | |
| 2" | M10X25 |
Model and specification(型號技術參數)
| Product | Model | WhellDiameter(mm) | Load Capacity (KG) | Height (mm) | Swivel Raclius (mm) | Wheel Width (mm) | Bearing |
| 產品 | 型號 | 輪徑 | 承重 | 安裝高度 | 輪子轉動半徑 | 輪寬 | 輪軸 |
鍍鋅架MPP輪 Galvanized/PP | 01-Z2-453B25 | 25 | 13 | 41 | 28 | 13 | 滑動軸 plain bearing |
| 01-Z2-453B32 | 32 | 18 | 47 | 32 | |||
| 01-Z2-453B38 | 38 | 23 | 53 | 37 | 17 | ||
| 01-Z2-453B50 | 50 | 25 | 67 | 45 | 18 | ||
鍍鋅架TPE輪 Galvanized/TPE | 01-Z2-033G25 | 25 | 12 | 41 | 28 | 13 | 滑動軸 plain bearing |
| 01-Z2-033G32 | 32 | 17 | 47 | 32 | |||
| 01-Z2-033G38 | 38 | 23 | 55 | 37 | 17 | ||
| 01-Z2-033G50 | 50 | 25 | 67 | 45 | 18 | ||
鍍鋅架TPU輪 Galvanized/TPU | 01-Z2-213B25 | 25 | 13 | 41 | 28 | 14 | 滑動軸 plain bearing |
| 01-Z2-213B32 | 32 | 18 | 47 | 32 | |||
| 01-Z2-213B38 | 38 | 25 | 54.5 | 37 | 18 | 單軸承 Single Bearing | |
| 01-Z2-213B50 | 50 | 28 | 67 | 45 | |||
滾鉻架MPP輪 Chrome roll/PP | 01-C2-451Q25 | 25 | 13 | 41 | 28 | 13 | 單軸承 Single Bearing |
| 01-C2-451Q32 | 32 | 18 | 47 | 32 | |||
| 01-C2-451Q38 | 38 | 25 | 54.5 | 37 | 17 | ||
| 01-C2-451Q50 | 50 | 28 | 67 | 45 | 18 | ||
滾鉻架TPE輪 Chrome roll/TPE | 01-C2-031K25 | 25 | 13 | 41 | 28 | 13 | 單軸承 Single Bearing |
| 01-C2-031K32 | 32 | 17 | 47 | 32 | |||
| 01-C2-031K38 | 38 | 23 | 55 | 37 | 17 | ||
| 01-C2-031K50 | 50 | 25 | 67 | 45 | 18 | ||
烤漆架TPE輪 Paint/TPE | 01-CU2-031X25 | 25 | 13 | 41 | 28 | 13 | 單軸承 Single Bearing |
| 01-CU2-031X32 | 32 | 17 | 47 | 32 | |||
| 01-CU2-031X38 | 38 | 23 | 55 | 37 | 17 | ||
| 01-CU2-031X50 | 50 | 25 | 67 | 45 | 18 |
