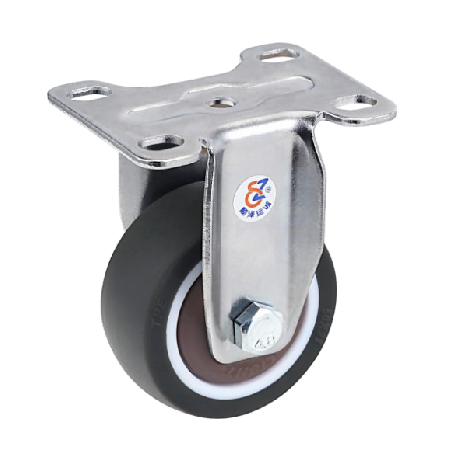

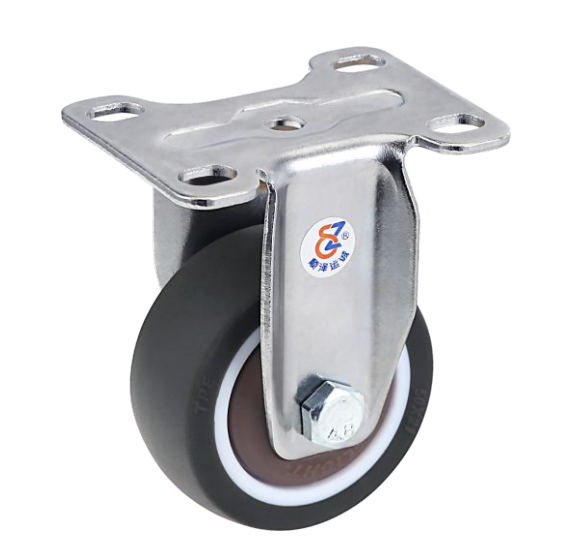

工業(yè)系列輕型腳輪02 Series（輕型系列）
2021-08-19 1018

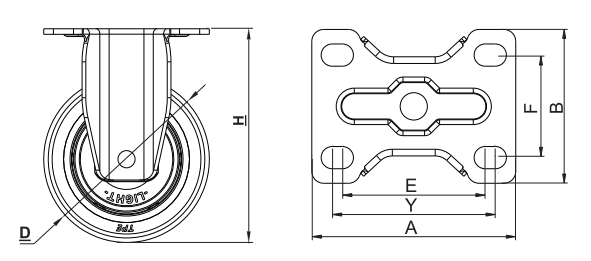

| 尺寸 | 安裝方式 | 底板大小 | 安裝孔距 | 安裝孔 |
| Size | Fitting type | Plate size | Hole spacing | Hole diameter |
| 1.5" | 定向 | 60X46 | 48X30 42X30 | 6.5 |
| 2" | ||||
| 2.5" | ||||
| 3" | 72X53 | 55X35 49X35 | 8.2 | |
| 4" |
Model and specification(型號技術(shù)參數(shù))
| Product | Model | WhellDiameter(mm) | Load Capacity (KG) | Height (mm) | Wheel Width (mm) | Bearing |
| 產(chǎn)品 | 型號 | 輪徑 | 承重 | 安裝高度 | 輪寬 | 輪軸 |
鉻+KTPE-1 | 02-C4-031K40 | 40 | 單軸承 Single Bearing | |||
| 02-C4-031K50 | 50 | 38 | 70 | 21 | ||
| 02-C4-031K60 | 60 | 45 | 80.5 | |||
| 02-C4-031K75 | 75 | 55 | 97.5 | 25 | ||
| 02-C4-031K100 | 100 | |||||
鉻+GPP-1 | 02-C4-451G40 | 40 | 單軸承 Single Bearing | |||
| 02-C4-451G50 | 50 | 40 | 70 | 21 | ||
| 02-R4-451G60 | 60 | 48 | 80.5 | |||
| 02-R4-451G75 | 75 | 58 | 97.5 | 25 | ||
| 02-R4-451G100 | 100 | |||||
彩色+XTPE-1 | 02-CU4-031X40 | 40 | 單軸承 Single Bearing | |||
| 02-CU4-031X50 | 50 | 38 | 70 | 21 | ||
| 02-CU4-031X60 | 60 | 45 | 80.5 | |||
| 02-CU4-031X75 | 75 | 55 | 97.5 | 25 | ||
| 02-CU4-031X100 | 100 |
