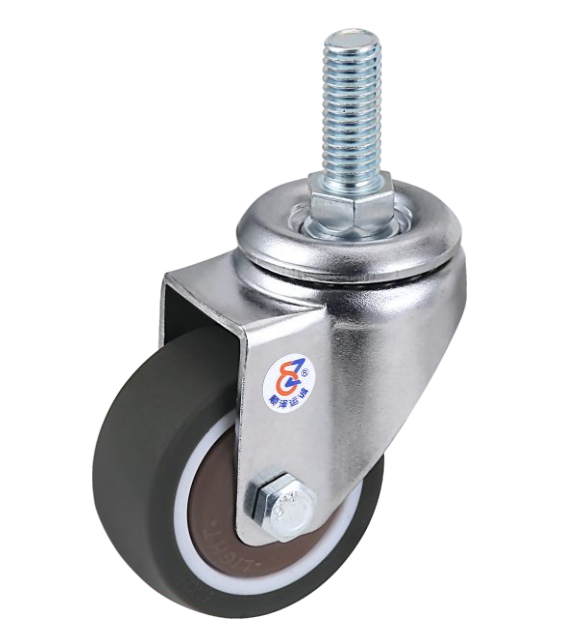

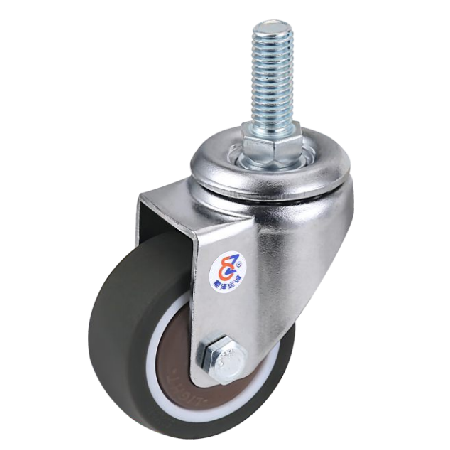

工業系列輕型腳輪02 Series（輕型系列）
2021-08-19 970
| 尺寸 | 安裝方式 | 絲桿規格 |
| Size | Fitting type | Threadedstem size |
| 1.5" | 絲桿活動 | M10X25 C=14 |
| 2" | ||
| 2.5" | ||
| 3" | M10X30 C=14 | |
| 4" |

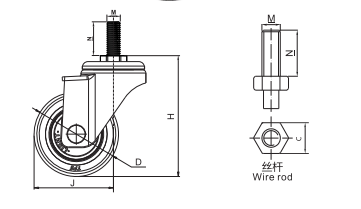

Model and specification(型號技術參數)
| Product | Model | WhellDiameter(mm) | Load Capacity (KG) | Height (mm) | Swivel Radius (mm) | Wheel Width (mm) | Bearing |
| 產品 | 型號 | 輪徑 | 承重 | 安裝高度 | 輪子轉動半徑 | 輪寬 | 輪軸 |
鉻+KTPE-1 | 02-C2-031K40 | 40 | 單軸承 Single Bearing | ||||
| 02-C2-031K50 | 50 | 38 | 71 | 46 | 21 | ||
| 02-C2-031K60 | 60 | 45 | 82 | 51 | |||
| 02-C2-031K75 | 75 | 55 | 99.5 | 63 | 25 | ||
| 02-C2-031K100 | 100 | ||||||
鉻+GPP-1 | 02-C2-451G40 | 40 | 單軸承 Single Bearing | ||||
| 02-C2-451G50 | 50 | 40 | 71 | 46 | 21 | ||
| 02-R2-451G60 | 60 | 48 | 82 | 51 | |||
| 02-R2-451G75 | 75 | 58 | 99.5 | 63 | 25 | ||
| 02-R2-451G100 | 100 | ||||||
彩色+XTPE-1 | 02-CU2-031X40 | 40 | 單軸承 Single Bearing | ||||
| 02-CU2-031X50 | 50 | 38 | 71 | 46 | 21 | ||
| 02-CU2-031X60 | 60 | 45 | 82 | 51 | |||
| 02-CU2-031X75 | 75 | 55 | 99.5 | 63 | 25 | ||
| 02-CU2-031X100 | 100 |
