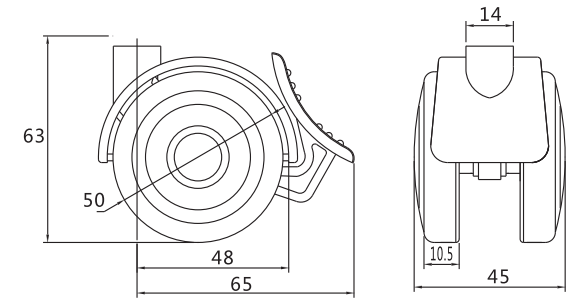

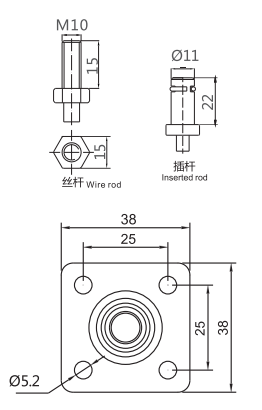

型號 Model | 輪徑 Wheel diameter | 承重 Lood-capaciy | 安裝高度 Installation height | 輪子轉(zhuǎn)動半徑 Radius of gyration | 最大轉(zhuǎn)動半徑 Maximum radius of gyration | 絲桿規(guī)格 Threaded stem size | 插桿規(guī)格 Inserted rod | 輪寬 whell width | 輪軸 Whell axle |
79-WP1-223B50 | 50 | 23 | 67 | 48 | 65 | 45 | 滑動軸 Plain bearing | ||
79-WP2-223B50 | 63 | M10x15 | |||||||
79-WP5-223B50 | Φ11x22 | ||||||||
79-WP1E-223B50 | 67 | ||||||||
79-WP2E-223B50 | 63 | M10x15 | |||||||
79-WP5E-223B50 | Φ11x22 |
