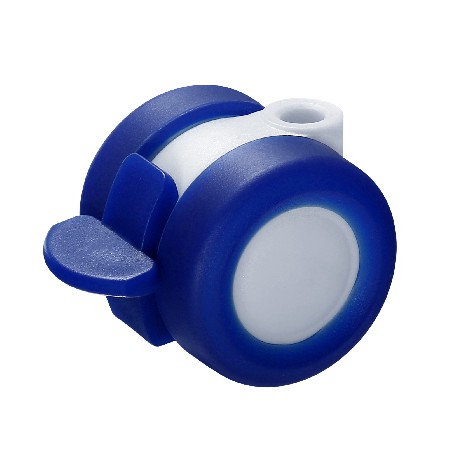

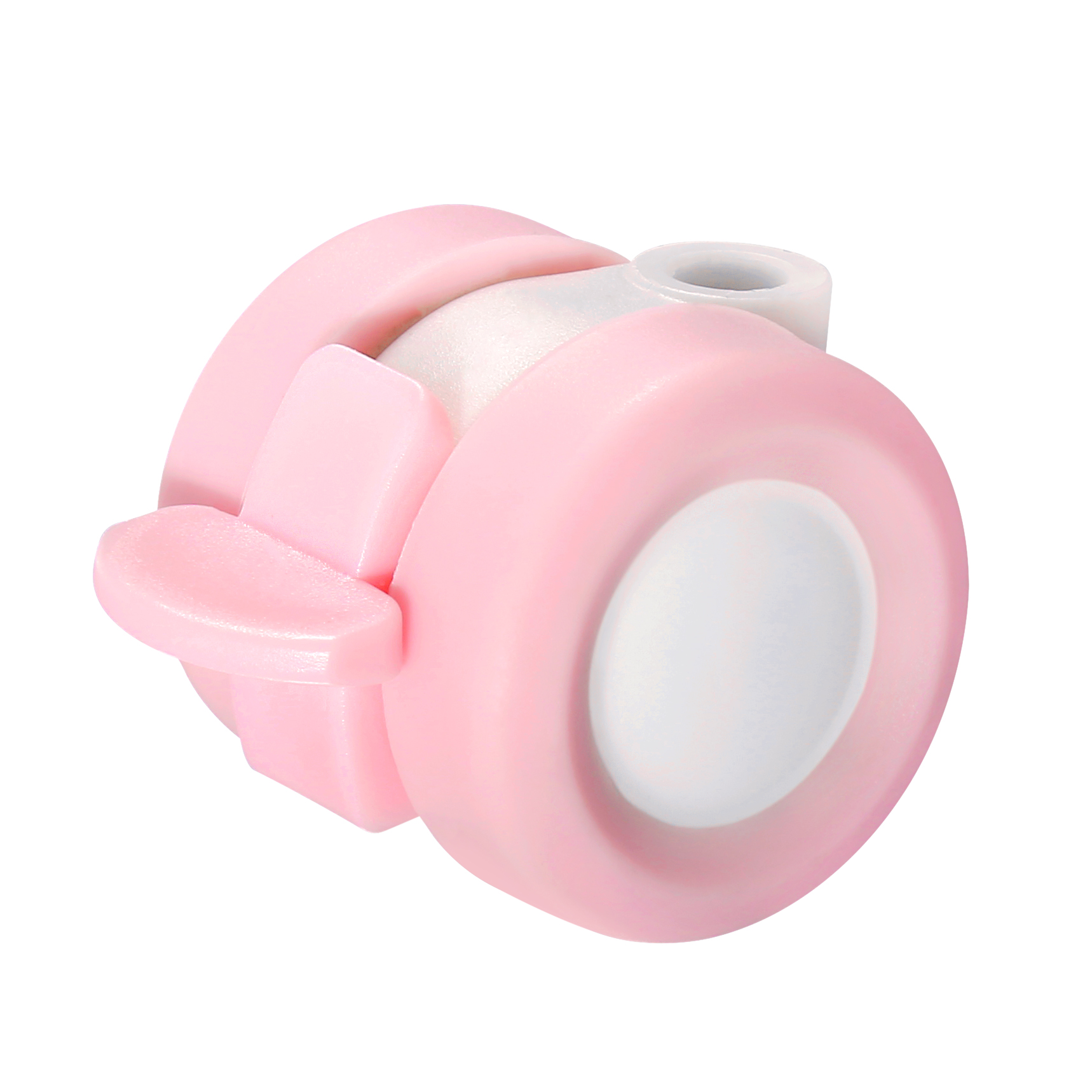

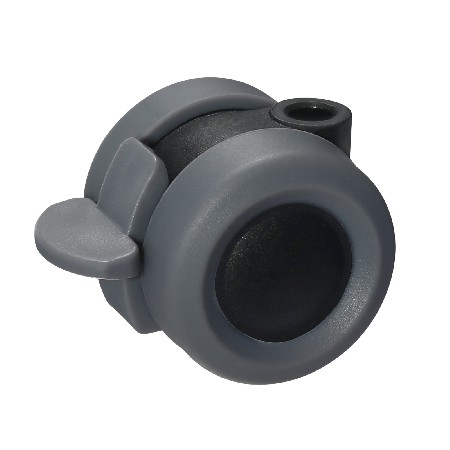

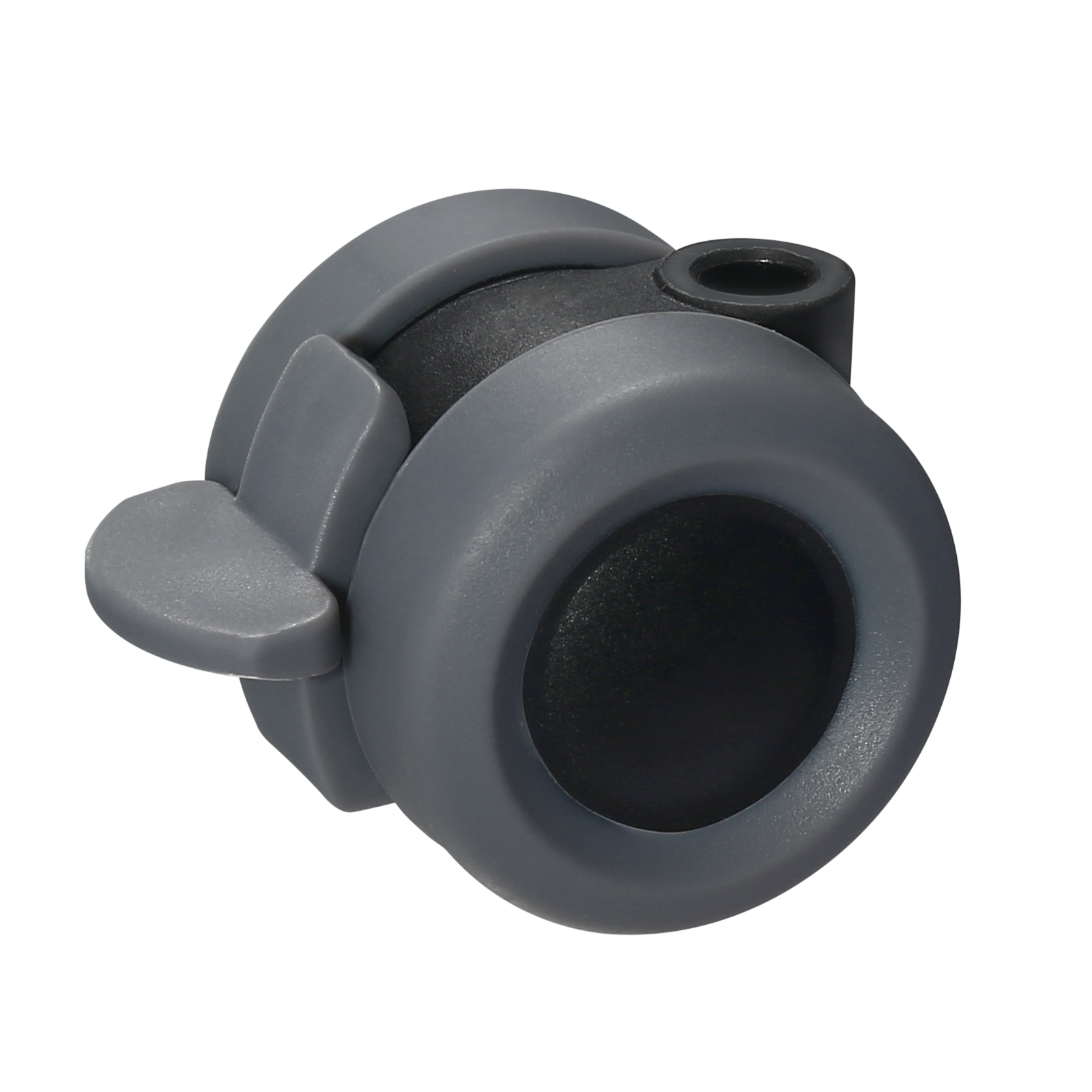

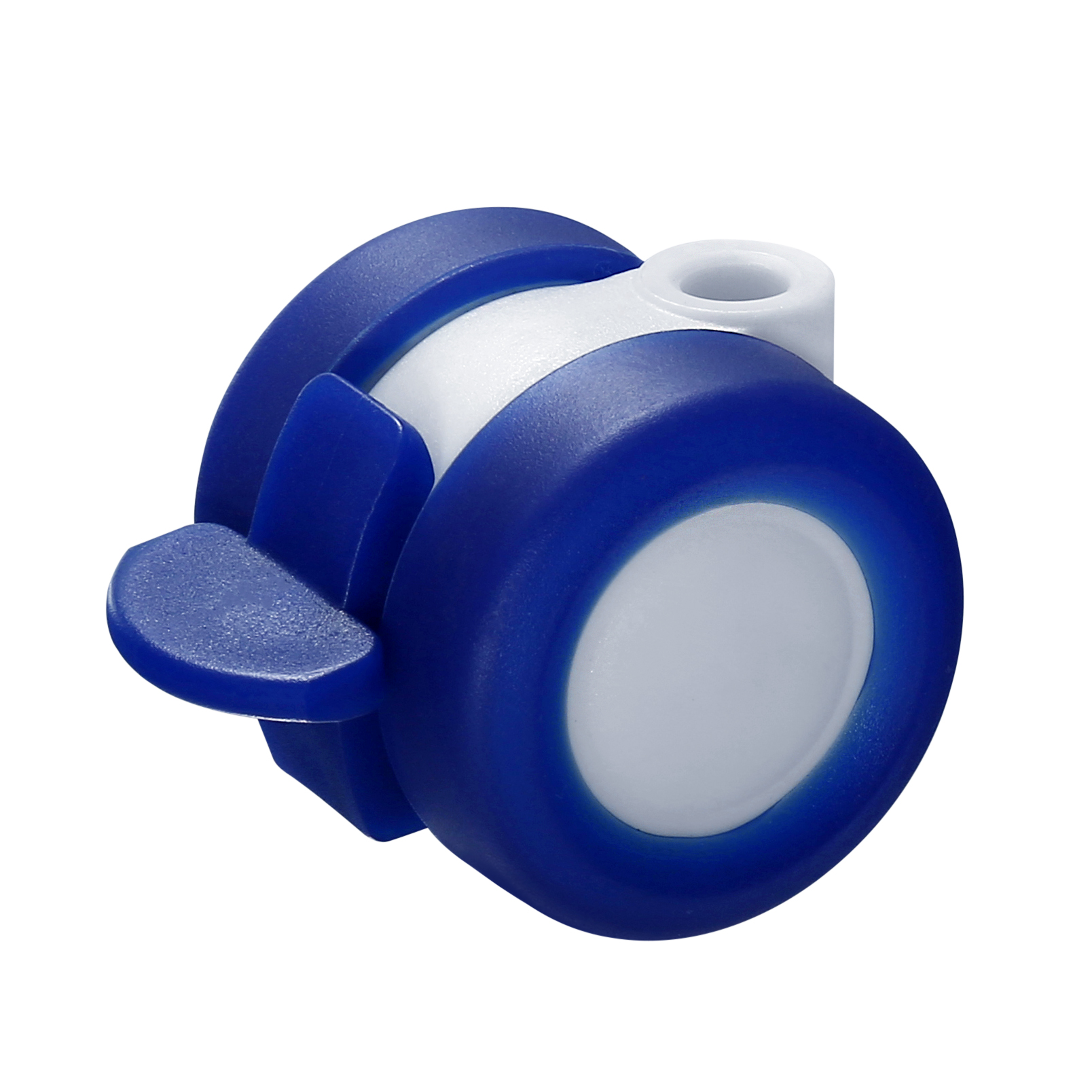

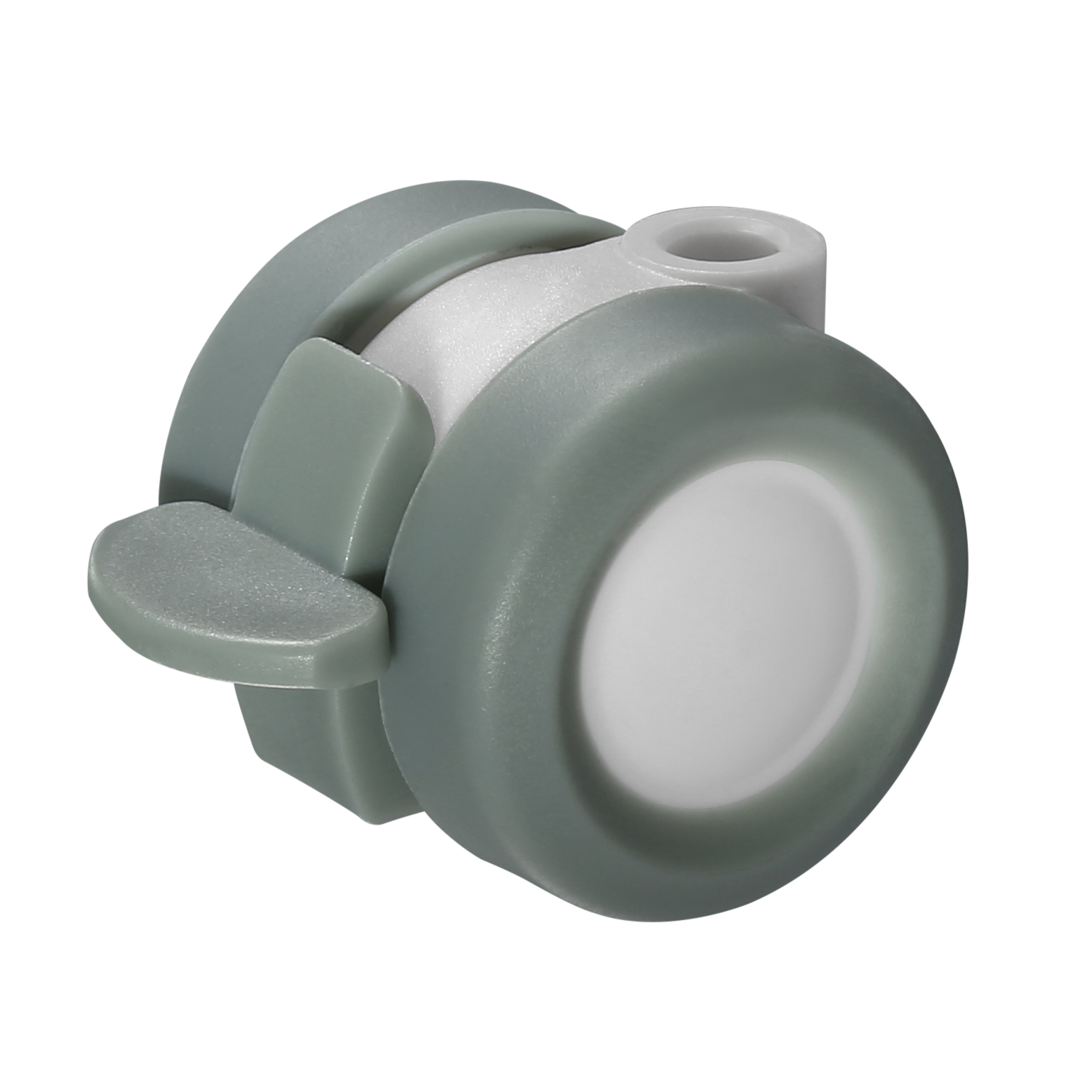

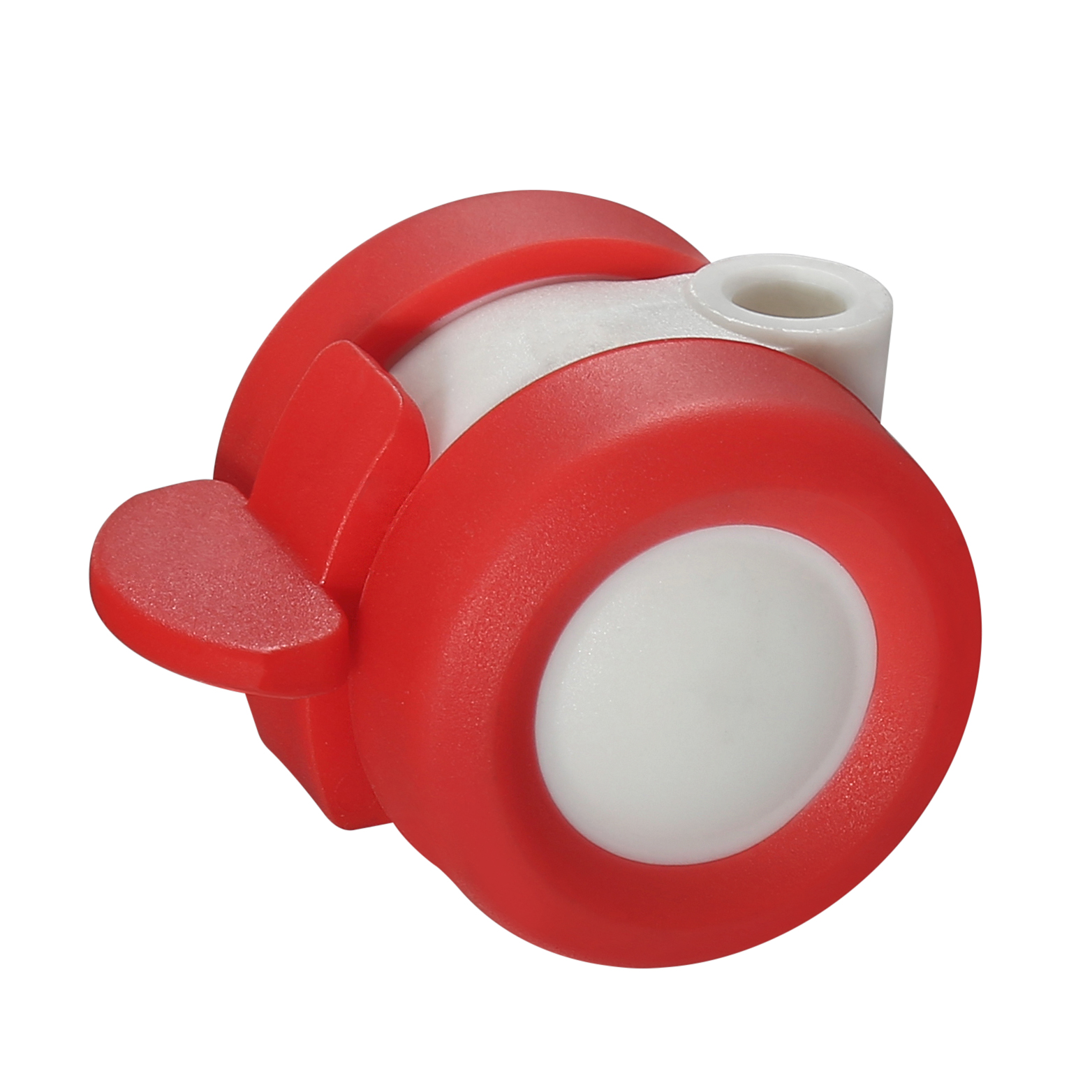

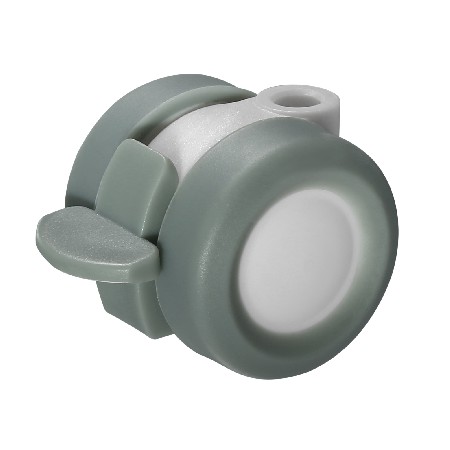

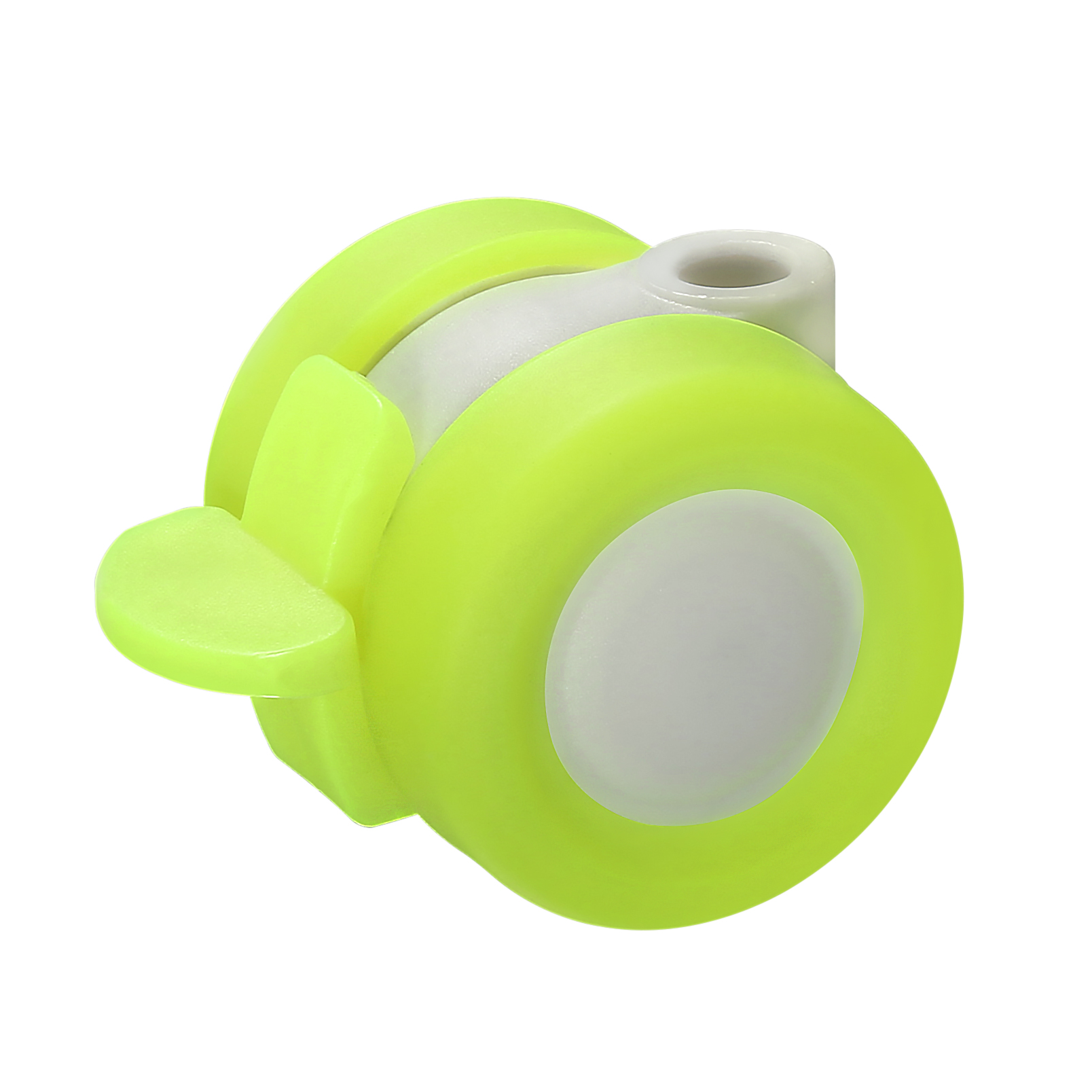

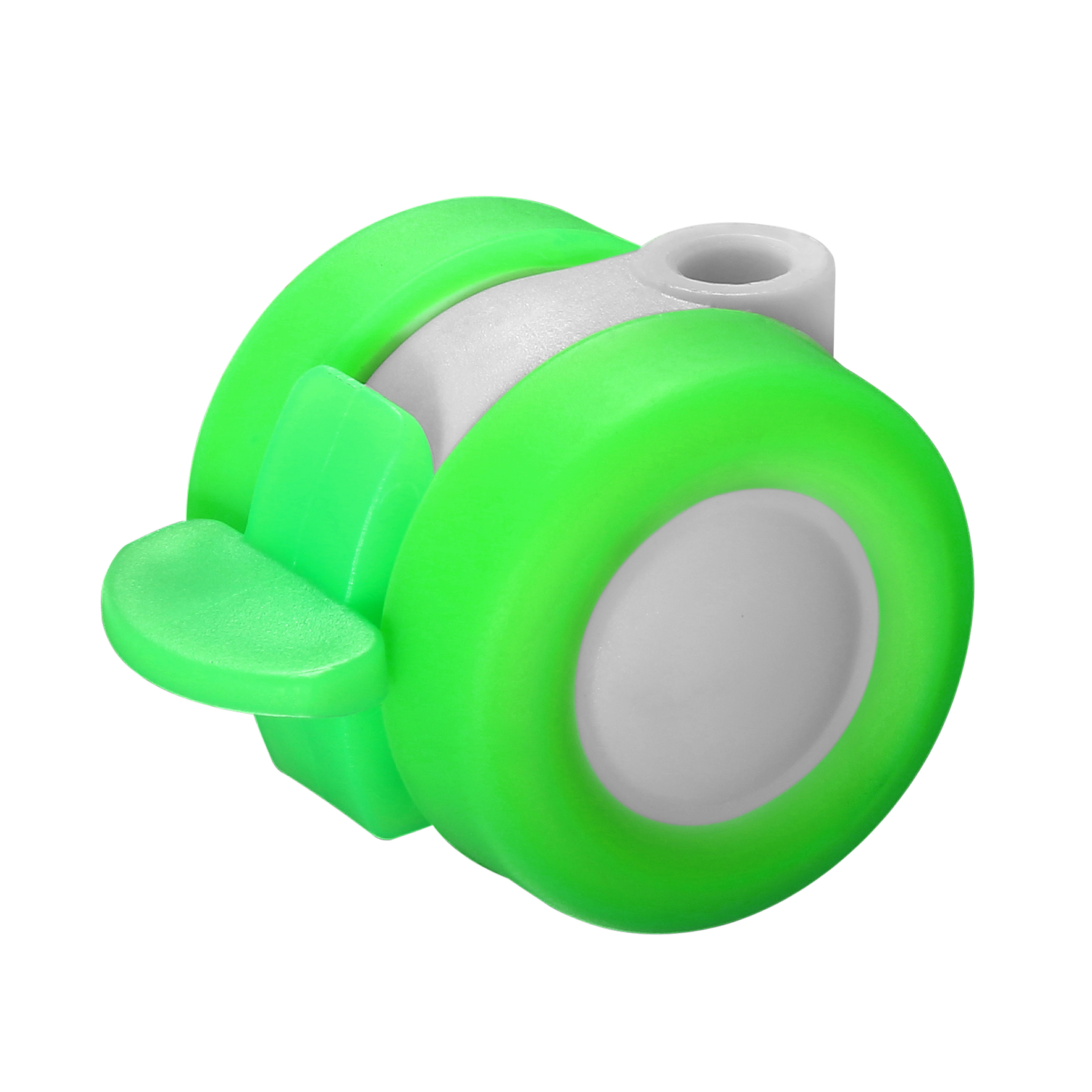

81系列 81 Series
2021-08-19 983

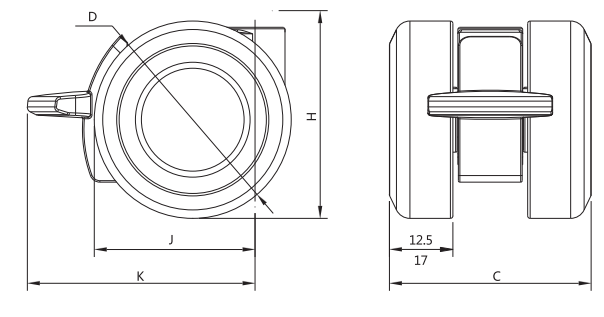

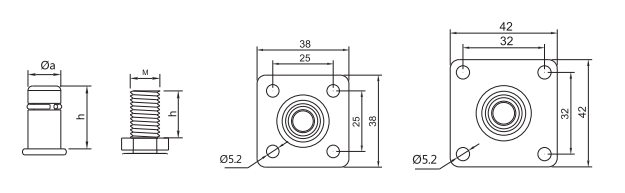

型號 Model | 輪徑 Wheel diameter | 承重 Lood-capaciy | 安裝高度 Installation height | 輪子轉動半徑 Radius of gyration | 最大轉動半徑 Maximum radius of gyration | 絲桿規格 Threaded stem size | 插桿規格 Inserted rod | 輪寬 whell width | 輪軸 Whell axle |
| 81-CU1-043X39 | 39 | 15 | 47 | 32 | 40.5 | 滑動軸 Plain bearing | |||
| 81-CU2-043X39 | 43.5 | M6/M8x15 | |||||||
| 81-CU5-043X39 | Φ8x19 | ||||||||
| 81-CU1E-043X39 | 47 | 45 | |||||||
| 81-CU2E-043X39 | 43.5 | M10x15 | |||||||
| 81-CU5E-043X39 | Φ8x19 | ||||||||
| 81-CU1-043X65 | 65 | 25 | 70 | 47 | 53 | ||||
| 81-CU2-043X65 | 65 | M8/M10x15 | |||||||
| 81-CU5-043X65 | Φ11x22 | ||||||||
| 81-CU1E-043X65 | 70 | 63.5 | |||||||
| 81-CU2E-043X65 | 65 | M8/M10x15 | |||||||
| 81-CU5E-043X65 | Φ11x22 |
